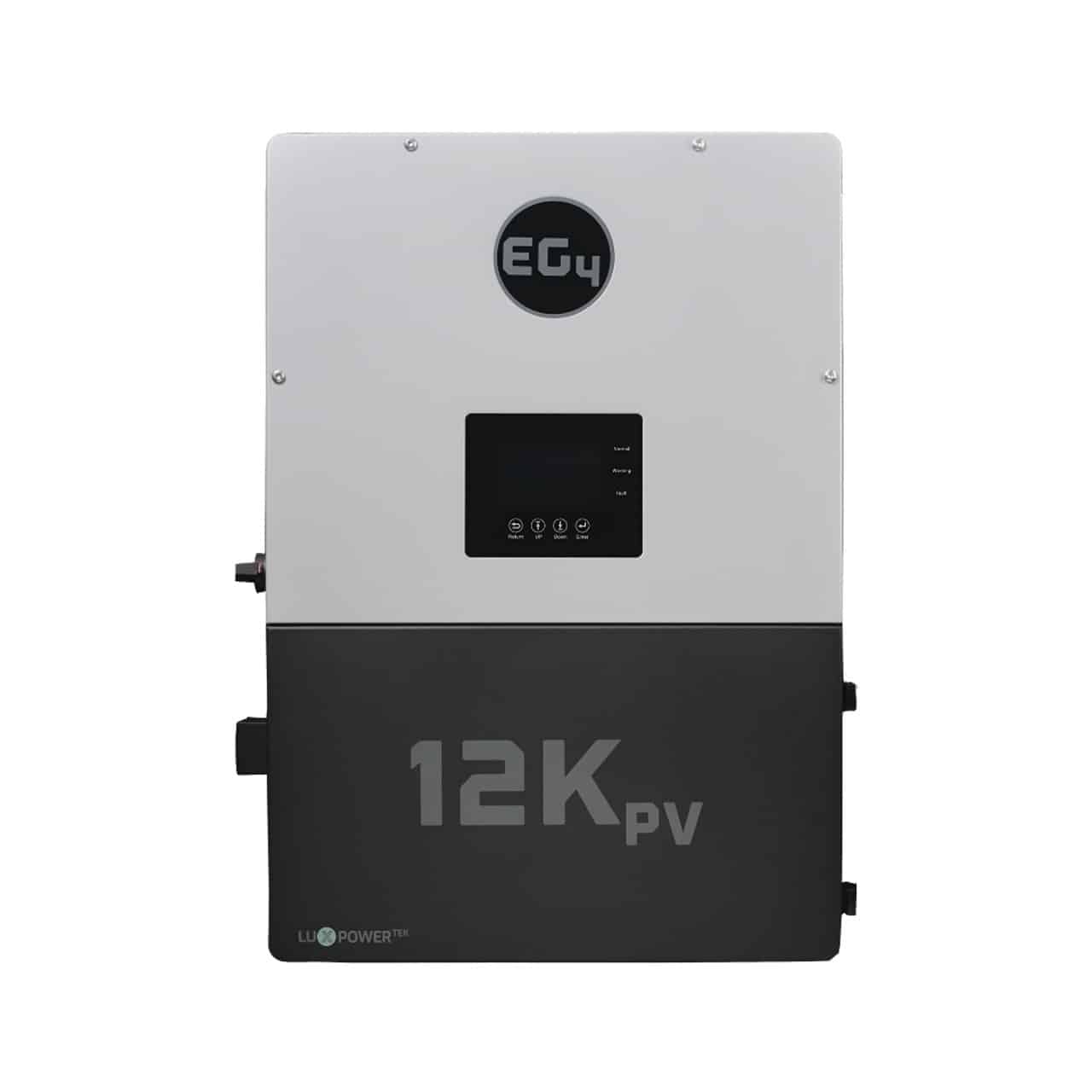

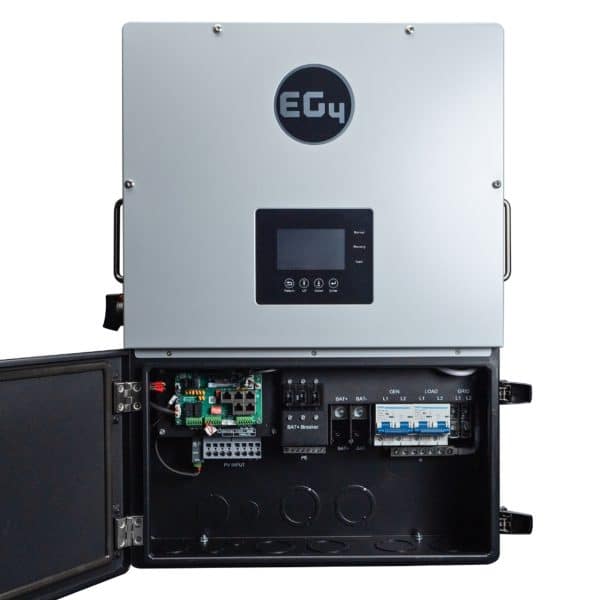

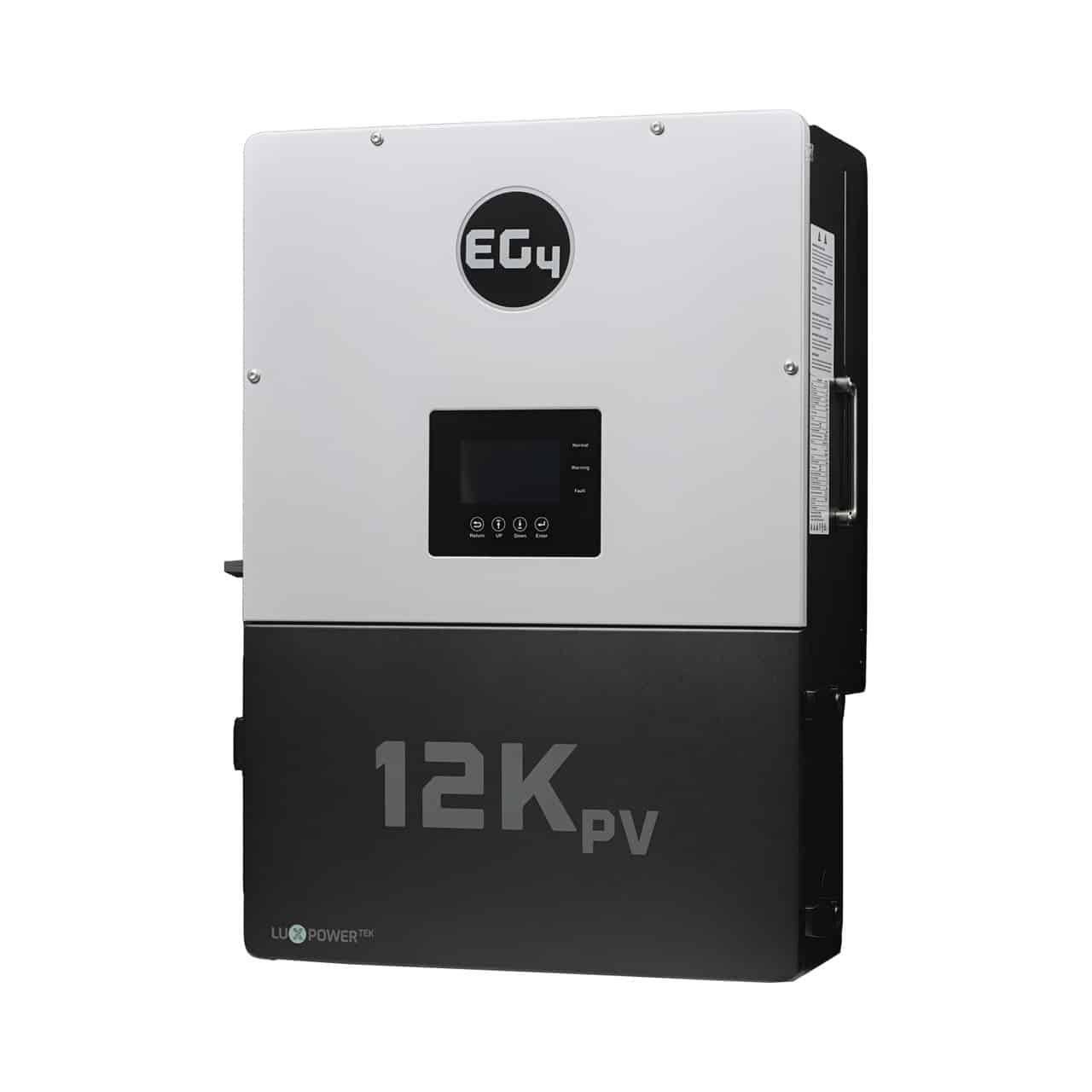

The EG4 12kPV is a 48V, split-phase hybrid inverter designed for both rural and suburban homeowners seeking energy independence. It is similar to the EG4 18kPV in its ability to power loads while charging batteries and also shares the same certifications, architecture, and firmware.
However, the 12kPV is more compact, making installation simpler, and provides significant cost savings. It plays a central role in the EG4 energy storage system, incorporating MPPTs, a two-way DC-AC inverter, grid interaction, and battery connectivity. This integration of grid-tie and off-grid functionalities removes the need for additional charge controllers or transformers, offering a convenient and comprehensive energy solution.

The 12kPV supports 12kW of PV input and 8kW of continuous output, even during battery charging, positioning it as an effective option for those looking to implement a lightweight ESS. Additionally, its modular design allows for expansion, adapting to both today and tomorrow’s energy needs. Users can monitor system performance and perform updates remotely via the EG4 Web Monitoring Website/App, ensuring control and flexibility.

Elevate energy independence with the 12kPV. This compact, cost-effective powerhouse integrates seamlessly into energy storage systems, offering an all-in-one solution. With swift installation, remote monitoring, and future-ready features, the 12kPV ensures reliable, efficient, and scalable energy solutions.
Enter the solar landscape confidently, backed by EG4’s US-based support and a constant commitment to powering the way into the future.

• 8000W Power Output, Max AC input 12000W
• 12000W PV Input Utilized, 15000W Max Input
• Utilize both grid-tie and off-grid functionality simultaneously
• Monitor everything through EG4’s user-friendly mobile app or website
• 2 MPPTs with 600VDC max input each, 2 inputs per MPPT
• User-friendly and configurable LCD display
• Parallel up to 10 units for 120kWs
• Closed loop communication with EG4 & SOK SK48V100 batteries
• Overload, short circuit, and over temperature protection
• 120/240V split phase output with line balancing
• UL1741SB Certfied
• Benefit from EG4’s 10-year warranty
• Remote adjustment via software

EG4 12kPV Quick Start Guide v1.1

12kPV-COC EG4®-12kPV-Connections-Paralleling-Guide

EG4®-12kPV-Device-Monitoring-Settings-Guide

EG4®-12kPV-Troubleshooting-Maintenance-Guide
