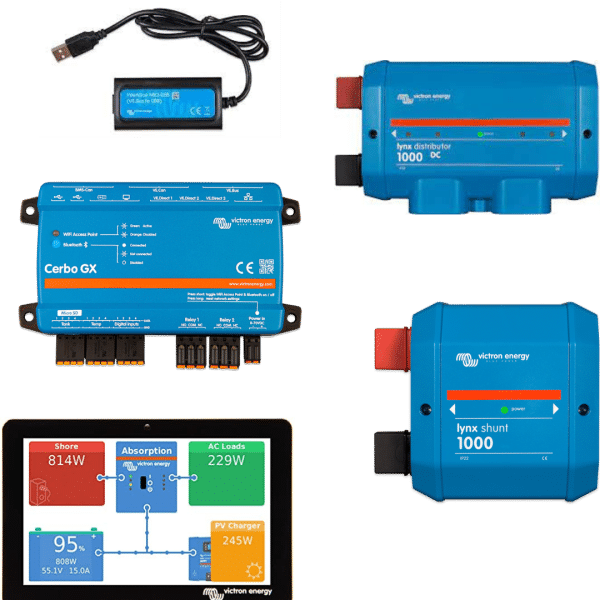

Victron Connection Kit w/Cerbo and GX 50 LCD

• Cerbo GX: Communication-Center
  • This communication-centre allows you to always have perfect control over your system from wherever you are and to maximise its performance. Simply access your system via our Victron Remote Management (VRM) portal, or access it directly, using the optional GX Touch screen, a Multi-Functional Display (MFD) or our VictronConnect app thanks to its Bluetooth capability.

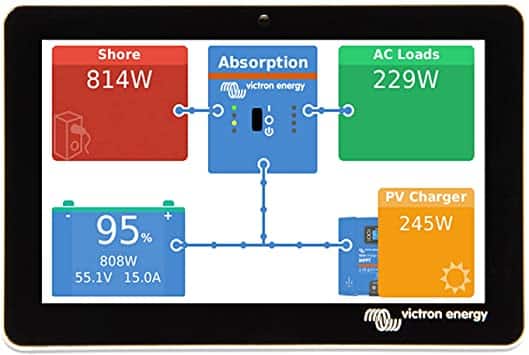

• GX Touch: Display Accessory
  • The GX Touch 50 and GX Touch 70 are display accessories for the Cerbo GX. The five inch and seven inch touch screen displays give an instant overview of your system and allows you to adjust settings. Simply connect the display to the Cerbo GX with just one cable. Both GX Touch displays have a waterproof design, a top-mountable setup and are simple to install.
• Remote Console on VRM
  • Monitor, control and configure the Cerbo GX remotely, over the internet. Just like if you were standing in front of the device, using Remote Console. The same functionality is also available on the local network LAN, or using the WiFi Access Point of the Cerbo GX.
• Perfect monitoring & control
  • Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimise the system. Follow up on alerts, perform diagnostic checks and resolve complications remotely.
• Simple mounting and configuration
  • The Cerbo GX is easily mountable and can also be mounted on a DIN-Rail using the DIN35 adapter small, (not included). Its separate touchscreen can be bolted on a dashboard, eliminating the need to create perfect cutouts (like with the Color Control GX). Connection is easy via just one cable, taking away the hassle of having to bring many wires to the dashboard. The Bluetooth feature enables a quick connection and configuration via our VictronConnect app. Cerbo GX, Cerbo-S GX and GX Touch Cerbo GX GX Touch (optional display for Cerbo GX) Accessories included with the Cerbo GX WiFi indicator LED The Cerbo GX can connect to a WiFi Network Bluetooth indicator LED The Cerbo GX can be accessed directly via Bluetooth using the VictronConnect app.

Specifications:

• Supply Voltage: 8 – 70V DC
• Mounting: Wall or DIN rail (35mm)(2)
• VE.Direct ports (always isolated): 3
• VE.Bus (always isolated): 2 paralleled RJ45 sockets
• VE.Can: yes - non isolated
• BMS-Can port: yes
• Resistive tank level inputs: 4
• Temperature sense inputs: 4
• Digital Inputs: 4
• Outer dimensions (h x w x d): 78 x 154 x 48 mm
• Cable length: 2 meter
